AGM Nighthawk 250 Quadcopter Frame Kit Combo Carbon Gimbal Support Frame 3 Color
  • AGM Nighthawk 250 Quadcopter Frame Kit Combo Carbon Gimbal Support Frame 3 Color

AGM Nighthawk 250 Quadcopter Frame Kit Combo Carbon Gimbal Support Frame 3 Color

Model: RHP023-X01  (Inventory: In Stock )

Retail:   $67.10

  • Quantity:    Unit(s)
  •      Add This to My Cart
  • + Add To Wish List

Payment: Order will be shipped within 24-48 hours (Mon-Fri).

Buy more,save more.

Country:       Calc
Shipping From : Shipping Time ( ? Working Days )

Sales Manager:
Simón
  • Mail : sales@agmhobby.com
  • Skype : simonquintela@hotmail.com
Payment:
Warehouse:
Shipping:

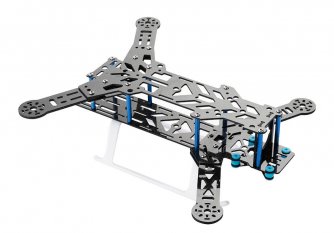

This is a light unassembled frame for those who like to mod. With pure carbon fibre plates and arms,this is an amazing frame, very stiff and well machined.
It has a party trick that nothing else of this size has .... it folds for travel etc..
Will happily take a 6 inch prop with some room to spare.It's ripe for a v tail conversion. Hope you have a conversion kit available soon
With rubber damper to decrease vibration during flight for camera, this plate can be mounted on the top or bottom.Aluminum alloy spacer, light weight, reliable
Specification:
Main Material: Carbon Fibre
Dimension: 260*240*98mm
Weight: 172g
Thickness of Frame arm:3mm
Thickness of Frame Upper/Lower Board:2mm
Aperture of Frame Arm: 6.8mm
Recommended Configuration(Not included):
Motor: EMAX MT2204
ESC: EMAX Simon 12A ESC
Propeller: 5"-6" propeller.


Product package:
1.Horizontal mounted camera Lens holder 1(PCS)
2.Front mounted camera Lens holder 1(PCS)
3.Frame arms for installing motors in the bottom 2(PCS)
4.Frame arms for installing motors on top 2(PCS)
5.Frame upper board 1(PCS)
6.Frame lower board 1(PCS)
7.Frame auxiliary upper board 1(PCS)
8.Frame auxiliary lower board 1(PCS
9.H47.4 Aluminum post 4(PCS)
10.H42.9 Aluminum post 4(PCS)
11.H3 Aluminum post 6(PCS
12.Landing gear 1(PCS
13.Screw M2*5.5 17(PCS)
14.Rubber shock absorption ball 6(PCS)
15.M3 self-locking nut 14(PCS)
16.M2.5Nut 3(PCS)
17.Screw M3*12 14(PCS)
18.Screw M3*8 17(PCS)
19.Screw M3*6 17(PCS)
20.Screw M2.5*15 2(PCS)
21.Screw M2.5*10 2(PCS)
22. Nylon screw M3x6mm 5(PCS)
23. Inner Six angle wrench(1.5/2.0) 2(PCS)
24. CC3D hub board 1(PCS)
25. Power cord: 1pc
26. Buckle fastener: 10 pcs
27. Velcro straps: 1pc
28. Shrink tube: 1pc
