Martinez Board Controller V3.0 for AGM Brushless Camera Gimbal

This controller is compatible with brushless direct-drive (BLDC) motors, it is designed for AGM Gopro hero3 camera gimbal. The controller unit receives data from IMU to define camera inclination angles. It calculates the amount of compensation and sends command to the power unit, which controls the current in the winding and thus the direction of the vector of magnetic field in the stator.

Specification

- Brand: AGM
- Compatibility with: AGM Gopro3 camera gimbal
- PC connection port: MiniUSB
- Power input: max 4S/ 16.8V (12V is suggested)
- Main board size: 55*50*8mm
- Weight: 16g (including sensor and wire)

Features

- 2-Axis output supported
- ATMega328P microcontroller
- Onboard FT232RL USB-TTL converter
- 2~6 cells lipo input
- 3 Channels input
- Power and status LED
- Multiport
- UART Port
- MPU6050 6 axis gyro/accel with Motion Processing Unit (IMU board)
- On board logic level converter (IMU board)
- 3.3V/500mA LDO voltage regulator (IMU board)

Package

1 x Martinez Brushless Gimbal Board
1 x sensor
1 x connection wire

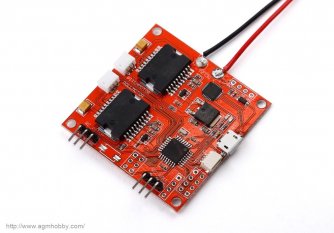

Martinez Brushless Gimbal Board
